Temperature and Humidity Data Logger

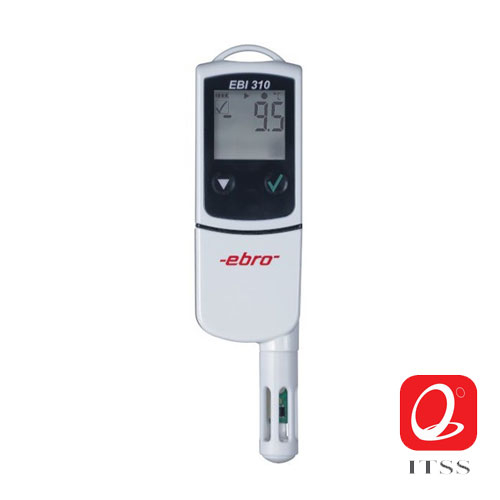

Temperature and Humidity USB Data Logger "Ebro" Model: EBI 310 TH

Temperature and Humidity USB Data Logger "Ebro" Model: EBI 310 TH

สอบถามข้อมูล
02-557-1073

Ebro EBI 310 TH Multi-Use USB Data Logger with external Humidity and Temperature Probe for the monitoring of relative air humidity in warehouses and during transport.

Manufacturer:
EBRO
Availability:
In Stock
SKU:
DL003-EBRO

Ebro EBI 310 TH Multi-Use USB Data Logger with external Humidity and Temperature Probe for the monitoring of relative air humidity in warehouses and during transport. Tamper proof design and easy to use through automatic PDF report generation, direct USB readout, and configuration.



Specification

Measuring range  Temperature: -30 °C...+75 °C, Humidity: 0 %RH … 100%RH
Accuracy Temperature Internal: ± 0.2 °C (-30 °C to 30 °C)
                                   ± 0.5 °C for the remaining measurement range
Temperature External: ± 0.5 °C (0 °C to 60 °C)
                                    ± 0.8 °C for the remaining measurement range
Humidity: ± 2 %RH (10 %RH … 90 % RH)
               ± 4% RH for the remaining measurement range
Resolution  Temperature: 0.1 °C, Humidity: 0.1 %RH
Data memory 120,000 measurements
Sample Rate  1 sec to 24 h
Dimensions 129 x 33 x 14mm
Battery Lithium button cell (CR 2450), 3V
Battery life time Up to 2 years, depending on applications
Probe temperature Pt 1000
Probe humidity Capacitive
Protection class IP 20



EBI 310 TH Multi-Use PDF Data Logger with with external humidity and temperatore probe


Relative humidity monitoring in storages and during transports



  Measurement range/operating temperature

  Measurement range internal
  temperature / operating temperature		  -30 °C … +75 °C (- 22 °F ... +167 °F)
  Accuracy (internal)   ± 0.2 °C (- 30 °C … + 30 °C / - 22 °F ... +86 °F)
± 0.5 °C for the remaining measurement range
  Accuracy (external)   ± 0.5 °C (0 °C … + 60 °C / +32 °F ... +140 °F)
± 0.8 °C for the remaining measurement range
  Probe Temperature
   Pt 1000
  Measurement range humidity
   0% rH … 100% rH
  Accuracy humidity
   ± 2% between 10% rH … 90% rH (at 25 °C / +77 °F)
± 4% for the remaining measurement range
  Probe humidity   capacitive
  Resolution temperature   0.1 °C
  Dimensions (L x W x H)
   129 x 33 x 14 mm
  Protection class
   IP 20
  Battery    Lithium button cell (CR 2450), 3V
  Battery lifetime    Up to 2 years, depending on applications
  Factory calibration certificate    0 °C and +20 °C; 32.8% and 75.4% rH
