Temperature and Humidity Data Logger

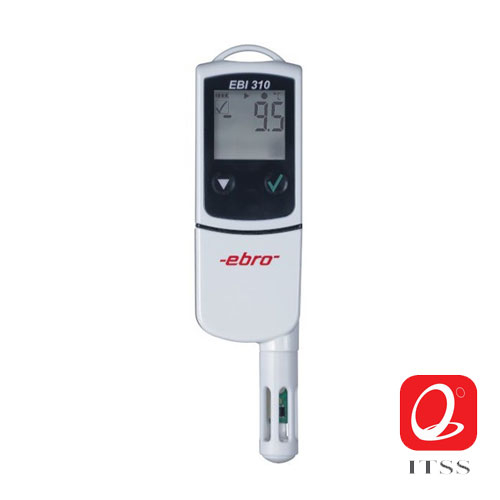

Temperature and Humidity USB Data Logger "Ebro" Model: EBI 310 TH

Temperature and Humidity USB Data Logger "Ebro" Model: EBI 310 TH

สอบถามข้อมูล
02-557-1073

The ebro EBI 300 TH is a Multi-Use Data Logger with External Humidity and Temperature Probe Data Logger with USB-Connection.

Manufacturer:
EBRO
Availability:
In Stock
SKU:
DL003-EBRO

The ebro EBI 300 TH is a Multi-Use Data Logger with External Humidity and Temperature Probe Data Logger with USB-Connection. This Standard Version data logger is a battery powered temperature measurement and recording instrument for relative humidity monitoring in storages and during transports.



PRODUCT FEATURES

  • Logger read-out without software
  • Automatic PDF generation
  • Access the data anywhere with the automatically generated PDF report and any PDF software
  • Minimise training, user errors and IT costs using the EBI 300's simple, easy to use design and standard software
  • Ensure data integrity since no data manipulation is possible
  • EN 12830, ATO, VO (EG) 37/2005 compliant
  • Factory calibration certificate included
  • Dimensions:: 14(H) x 129(L) x 33(W)mm
  • Humidity reading range (max.): 100% RH
  • Humidity reading range (min.): 0% RH
  • Protection type: IP20
  • Temperature reading range (max.): +70°C
  • Temperature reading range (min.): -30°C



Specification

Measuring range
Temperature: -30 °C to 70 °C, Humidity: 0 %RH to 100 %RH
Accuracy
Temperature Internal: ± 0.5 °C (-20°C to 40 °C )
  ± 0.8 °C for the remaining measuring range

Temperature External: ± 0.5 °C (-20°C to 40 °C )
  ± 1 °C for the remaining measuring range

Humidity: ± 3 %RH (10%RH to 90%RH)

± 5 % for the remaining measurement range
Resolution
Temperature: 0.1 °C, Humidity: 0.1 %RH
Dimensions
129 x 33 x 14 mm
Battery
CR 2450, 3 V
Data memory
40,000  measurements
Sensor
NTC, capacitive
Protection class
 IP20
Measured variables
Temperature, humidity
Intervall
1min....24h
Measuring range
-30 °C...+70 °C, 0 %RH...100 %RH
Storage temperature
-40 °C...+85 °C



EBI 310 TH Multi-Use PDF Data Logger with with external humidity and temperatore probe


Relative humidity monitoring in storages and during transports



  Measurement range/operating temperature

  Measurement range internal
  temperature / operating temperature		  -30 °C … +75 °C (- 22 °F ... +167 °F)
  Accuracy (internal)   ± 0.2 °C (- 30 °C … + 30 °C / - 22 °F ... +86 °F)
± 0.5 °C for the remaining measurement range
  Accuracy (external)   ± 0.5 °C (0 °C … + 60 °C / +32 °F ... +140 °F)
± 0.8 °C for the remaining measurement range
  Probe Temperature
   Pt 1000
  Measurement range humidity
   0% rH … 100% rH
  Accuracy humidity
   ± 2% between 10% rH … 90% rH (at 25 °C / +77 °F)
± 4% for the remaining measurement range
  Probe humidity   capacitive
  Resolution temperature   0.1 °C
  Dimensions (L x W x H)
   129 x 33 x 14 mm
  Protection class
   IP 20
  Battery    Lithium button cell (CR 2450), 3V
  Battery lifetime    Up to 2 years, depending on applications
  Factory calibration certificate    0 °C and +20 °C; 32.8% and 75.4% rH
